In modern suspension systems, the stabilizer bar (also called sway bar or anti-roll bar) is one of the most important components influencing how a car handles corners. It helps reduce body roll and keeps the vehicle more level during turns, improving stability and driver confidence.
However, what many drivers — and even some tuners — overlook is that the stabilizer bar’s preload plays a critical role in determining how the suspension behaves under both normal and dynamic driving conditions. An incorrectly preloaded stabilizer can cause uneven handling, understeer, or oversteer. In this article, we’ll break down what stabilizer bar preload is, how it affects vehicle balance, and what you can do to set it correctly.
What Is Stabilizer Bar Preload?
Preload refers to the initial tension or twist applied to a stabilizer bar when the vehicle is at rest. Ideally, a sway bar should have zero preload when both sides of the suspension are at the same height — meaning it’s neutral and doesn’t apply extra force to either side.
However, during installation or due to uneven ride height, one side of the stabilizer may be slightly twisted even before the vehicle moves. This creates preload — a condition where the bar is already storing energy and pushing unevenly on the suspension.
| Condition | Description | Effect |
|---|---|---|
| Zero preload | Both suspension arms level; stabilizer bar neutral | Balanced handling |
| Positive preload | One side compressed, other side extended | Shifts grip and handling bias |
| Excessive preload | Bar significantly twisted at rest | Unstable cornering, uneven ride height |
How Preload Develops
Stabilizer bar preload can occur for several reasons:
-
Uneven ride height – Often due to worn springs, incorrect spring rates, or improper coilover adjustment.
-
Incorrect installation – When the stabilizer is bolted in while the suspension is hanging (not loaded), it locks in tension once the car is on the ground.
-
Chassis distortion – Hard cornering or off-road use can cause subtle frame twisting that leads to bar misalignment.
-
Adjustable end links set unevenly – Performance cars often use adjustable links, and incorrect length settings can introduce unwanted preload.
The Effects of Stabilizer Bar Preload
Stabilizer bar preload doesn’t just affect comfort — it has a measurable impact on cornering behavior and balance.
1. Changes in Ride Height and Corner Weights
When preloaded, the stabilizer can lift one corner of the vehicle and push down another. This alters the corner weight distribution, which can make the car lean or squat unevenly.
2. Altered Handling Characteristics
A preloaded front stabilizer can make the vehicle understeer (the front pushes wide), while preload on the rear can promote oversteer (the rear slides first).
| Preload Location | Handling Effect | Driver Perception |
|---|---|---|
| Front stabilizer | Increases understeer | Car feels less responsive, safer but slower in corners |
| Rear stabilizer | Increases oversteer | Car rotates more easily, riskier for inexperienced drivers |
| Balanced preload | Neutral handling | Predictable and controllable cornering |
3. Uneven Tire Wear
Preload can cause unequal tire contact pressure, leading to premature tire wear — especially on performance setups where alignment is critical.
4. Reduced Suspension Efficiency
Because one side of the suspension is already loaded, it has less travel available to absorb bumps. This can make the ride harsh and unpredictable over uneven surfaces.
Real-World Example: Effects of Incorrect Preload
| Scenario | Setup | Vehicle Behavior | Outcome |
|---|---|---|---|
| Front bar installed with suspension unloaded | Bar tightened while wheels are off the ground | Front right corner preloaded | Car pulls slightly under braking, understeers in tight corners |
| Unequal coilover heights | Rear left higher than rear right | Rear bar preloaded | Oversteer in high-speed sweepers, unstable exits |
| Adjusted end links unevenly | Right link 3 mm longer than left | Slight preload at rest | Steering feels inconsistent mid-corner |
How to Check and Correct Stabilizer Bar Preload
If you’ve recently installed suspension components or adjustable sway bars, checking for preload is essential.
Step-by-Step Guide:
-
Park on a level surface – Ensure both sides of the suspension are equally loaded.
-

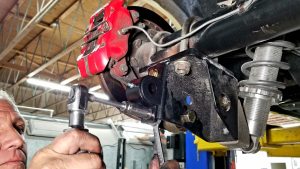

Loosen the end links – With the suspension at ride height, disconnect one end link from the bar.
-
Observe bar position – If the free end moves up or down when unbolted, there’s preload.
-
Adjust link length (if adjustable) – Lengthen or shorten until both sides are neutral.
-
Reinstall with suspension loaded – Never tighten end links while the wheels are off the ground.
Pro Tip: Use adjustable end links with spherical joints for fine-tuning and durability.
Performance Tuning: Using Controlled Preload
While zero preload is ideal for most vehicles, controlled preload can be useful in motorsport applications. By adding slight preload to one end, tuners can intentionally bias grip toward the front or rear.
| Purpose | Preload Direction | Result |
|---|---|---|
| Reduce understeer | Add preload to rear bar | More rotation on corner entry |
| Improve traction on exit | Add preload to front bar | Keeps front tires planted |
| Fine-tune balance on track | Adjust both bars symmetrically | Stable, predictable handling |
Such tuning must be done carefully, as excessive preload can make the car unpredictable at high speeds.
The Role of Adjustable Stabilizer Bars
Modern performance and aftermarket stabilizers often include multiple mounting holes or threaded end links for easy adjustment. These features allow precise control of both stiffness and preload.
Benefits of adjustable stabilizer bars:
-
Fine-tune cornering balance.
-
Reduce lap times by improving grip distribution.
-
Compensate for weight differences in modified or track-prepared vehicles.
-
Simplify corner-weight adjustments during alignment.
For high-quality adjustable sway bars and related components, you can visit Buy Stabilizer & Components online — a trusted source offering OEM and performance-grade parts for various car models.
Common Mistakes to Avoid
-
Tightening sway bar links with wheels off the ground.
– This is the most common cause of preload. Always torque with the vehicle’s weight on the suspension. -
Ignoring bushing wear.
– Old rubber bushings can create uneven loading and inconsistent sway bar motion. -
Mixing non-matching components.
– Combine stabilizers, links, and mounts from the same manufacturer when possible. -
Setting preload unevenly side-to-side.
– Even small differences (2–3 mm) can affect cornering behavior. -
Skipping post-installation alignment.
– Any change in suspension geometry requires realignment for proper handling.
Cost and Maintenance Considerations
| Component | Average Price (€) | Recommended Replacement Interval | Note |
|---|---|---|---|
| Stabilizer bar | 100–300 | 100,000 km+ | Check for cracks or corrosion |
| End links | 50–150 | 60,000–80,000 km | Replace if worn or noisy |
| Bushings | 30–100 | 60,000 km | Polyurethane lasts longer |
| Adjustable bar kits | 250–600 | As needed | Ideal for tuning enthusiasts |
Conclusion
Stabilizer bar preload might seem like a minor detail, but it has a major impact on how your car behaves on the road. Too much preload can upset corner balance, cause uneven tire wear, and make your vehicle unpredictable — while proper adjustment ensures balanced grip and smooth, confident handling.
Whether you’re fine-tuning a track car or restoring a daily driver, always check for preload after suspension work and consider upgrading to adjustable stabilizer components for precision control.
For quality stabilizer bars, bushings, and end links suited to your car’s setup, visit Buy Stabilizer & Components online — your reliable source for durable and performance-tested suspension parts.
With the right setup and correct preload, your suspension will deliver the balance, control, and driving confidence your car was designed for.
