Modern vehicles increasingly rely on adaptive air suspension systems to deliver the perfect balance between comfort, control, and handling. These systems automatically adjust ride height and damping stiffness based on driving conditions, load, and speed. However, even in such advanced setups, one traditional mechanical component remains indispensable — the stabilizer bar (also known as a sway bar or anti-roll bar).
While air suspension manages vertical motion and ride height, stabilizer bars handle lateral motion — controlling how much the body rolls during cornering or rapid maneuvers. Understanding how these two systems interact reveals why stabilizer bars remain critical even in high-tech, electronically controlled suspension designs.

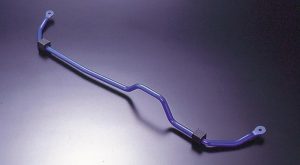

What Does a Stabilizer Bar Do?
A stabilizer bar connects the left and right sides of a vehicle’s suspension. Its primary purpose is to reduce body roll during cornering by transferring load from one wheel to the other.
When a car turns, weight shifts toward the outside wheels. Without a stabilizer bar, the inside wheels would lift and lose grip. The stabilizer bar twists and resists this motion, keeping the body level and improving stability.
| Function | Description | Benefit |
|---|---|---|
| Roll Control | Limits side-to-side body lean | Improved cornering stability |
| Load Distribution | Balances forces between left and right wheels | Enhanced tire contact |
| Ride Comfort | Minimizes abrupt body movement | Smoother transitions during turns |
| Safety | Reduces oversteer and understeer | Better handling predictability |
How Air Suspension Differs — and Why It Needs Stabilizer Bars
Air suspension replaces traditional metal springs with air-filled bellows. By adjusting the air pressure, the system can raise or lower the vehicle and soften or stiffen the ride. However, air springs alone cannot control body roll effectively because they act independently on each corner.
This is where stabilizer bars come in. They provide the mechanical link needed to manage lateral forces, complementing the air suspension’s vertical load control.
Key reasons stabilizer bars are still essential in air suspension systems:
-
Consistent Roll Resistance – Air suspension adjusts height but doesn’t inherently resist roll; the stabilizer adds this resistance.
-
Improved Steering Response – Reduces delay in steering feedback caused by air spring flexibility.
-
Cornering Stability – Keeps tires in better contact with the road, even when the system adjusts ride height dynamically.
-
Load Compensation – Balances uneven loads when air pressure varies between left and right sides.
Interaction Between Air Suspension and Stabilizer Bars
The relationship between stabilizer bars and adaptive air suspension is about balance. The air suspension controls vertical comfort, while the stabilizer bar handles lateral rigidity. Together, they create a responsive and adaptable ride.
| System Component | Primary Function | Interaction With Stabilizer Bar |
|---|---|---|
| Air Springs | Adjust ride height and absorb vertical shocks | Stabilizer helps manage side forces |
| Electronic Dampers | Control compression and rebound rate | Work with stabilizer to reduce roll speed |
| Ride Height Sensors | Detect body level and height | Detect preload changes due to bar stiffness |
| Control Unit (ECU) | Regulates air pressure and damping | Adjusts for any imbalance from stabilizer action |

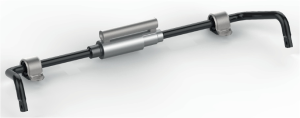

Active Stabilizer Bars in Adaptive Systems
High-end vehicles — such as luxury sedans, SUVs, and performance cars — now feature active stabilizer bars, also called electromechanical or hydraulic anti-roll systems.
Unlike traditional bars, which passively twist under load, active stabilizers adjust stiffness in real time based on driving conditions.
Advantages of Active Stabilizer Bars:
-
Variable Stiffness – Can be soft in straight-line driving and stiff during cornering.
-
Improved Comfort – Reduces unnecessary vibrations on rough roads.
-
Adaptive Control – Integrated with air suspension ECU for real-time adjustments.
-
Enhanced Safety – Prevents excessive roll in emergency maneuvers.
| Feature | Passive Stabilizer Bar | Active Stabilizer Bar |
|---|---|---|
| Operation | Mechanical torsion | Electrically or hydraulically actuated |
| Adjustability | Fixed stiffness | Variable, adaptive control |
| Comfort | Moderate | High (automatically adjusts to road) |
| Cost & Complexity | Low | High |
| Integration with Air Suspension | Indirect | Direct, through ECU control |
How Stabilizer Bar Tuning Affects Air Suspension Performance
Even in adaptive air suspension setups, the stabilizer bar’s diameter, stiffness, and connection points influence overall handling.
Key factors that affect performance:
-
Bar Diameter – Larger bars increase roll stiffness but reduce ride comfort.
-
Mounting Position – Higher or lower mounting changes the effective leverage and responsiveness.
-
Bushing Material – Rubber bushings improve comfort; polyurethane or spherical joints increase precision.
-
End Link Design – Adjustable end links are crucial for correcting preload when ride height changes.
| Adjustment | Effect on Handling | Impact on Comfort |
|---|---|---|
| Increase bar diameter | Reduces roll, sharpens handling | Harsher ride |
| Softer bushings | Better isolation | Slightly slower response |
| Stiffer bushings | More direct feedback | Increased vibration |
| Proper preload setup | Maintains neutral handling | Prevents uneven roll |
Common Issues When Combining Air Suspension and Stabilizer Bars
Despite the technological sophistication of adaptive systems, mechanical errors or misalignments can create problems.
Typical issues include:
-
Uneven cornering stiffness due to bar preload.
-
Bushing wear causing clunking noises.
-
Air suspension height correction interfering with stabilizer geometry.
-
Incorrect installation torque leading to restricted bar movement.
How to Avoid These Problems:
-
Always tighten stabilizer links and bushings at ride height, not when the suspension is hanging.
-
Inspect stabilizer mounts during every air spring service.
-
Use adjustable end links to correct for variable ride heights.
-
Replace worn bushings or end links promptly to maintain proper roll control.
Maintenance and Replacement Tips
| Component | Maintenance Interval | Common Symptoms of Wear | Replacement Tip |
|---|---|---|---|
| Stabilizer Bar Bushings | 60,000–80,000 km | Squeaking, vibration | Choose polyurethane for longevity |
| End Links | 50,000–70,000 km | Clunking over bumps | Use adjustable types for air suspension |
| Active Stabilizer Motors | 100,000 km+ | Uneven stiffness, fault codes | OEM parts recommended |
| Mount Brackets | Inspect yearly | Rust or cracks | Replace in pairs |
Maintaining these components ensures the stabilizer and air suspension systems work harmoniously, preserving both comfort and control.
Why Quality Components Matter
Because air suspension and stabilizer systems must work together seamlessly, even small deviations in stiffness, geometry, or material quality can cause significant handling imbalances. Using reliable components ensures consistent performance and safety.
For premium-quality sway bars, links, and bushings that meet OEM standards, visit
Buy Stabilizer & Components online.
Here, you’ll find parts engineered for precision fit and durability across various vehicle makes and models.
Conclusion
In adaptive air suspension systems, stabilizer bars continue to play a vital role in maintaining balance, safety, and driving enjoyment. While the air system manages ride height and comfort, stabilizer bars — especially active ones — ensure that the car remains flat and predictable during dynamic maneuvers.
A well-tuned combination of air suspension and stabilizer control transforms a vehicle’s handling: offering limousine-like comfort in daily driving and sports-car precision when cornering.
Whether you’re maintaining a luxury SUV or upgrading a performance car, always pay attention to the condition and setup of your stabilizer system. For dependable replacements and performance parts, remember to Buy Stabilizer & Components online — and keep your vehicle performing at its best, no matter the road ahead.
